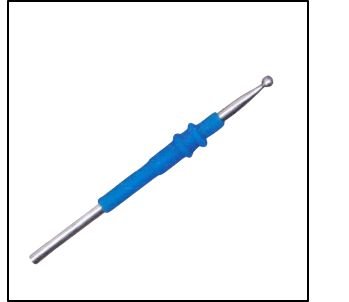

Ball Electrode – Straight (Insulated) – Comprehensive Technical Description

Overview

Engineered for precision electrical applications, the Ball Electrode – Straight (Insulated) delivers controlled current transmission while maintaining exceptional safety standards. Particularly suited for procedures requiring direct linear access, this electrode combines a rigid shaft with advanced insulation to ensure reliable performance in both medical and industrial settings.

Design & Features

1. Optimized Straight Shaft Design

Featuring a rigid, straight configuration, this electrode enables precise targeting of specific areas. Additionally, its spherical tip (available in 1mm–5mm diameters) guarantees uniform electrical contact. Unlike angled alternatives, the straight design provides unobstructed access, while the smooth rounded surface prevents tissue damage during delicate procedures.

2. Advanced Insulation System

To ensure maximum safety, the electrode incorporates medical-grade insulation materials including PTFE, ceramic, or specialized polymers. Consequently, this design effectively contains current flow exclusively to the contact point. Moreover, the insulation significantly reduces electromagnetic interference, making it ideal for sensitive diagnostic applications such as EEG and EMG.

3. High-Performance Conductive Core

Constructed from premium materials like stainless steel, platinum, or gold, the core demonstrates excellent conductivity. For enhanced applications, platinum-iridium options offer superior signal fidelity, whereas gold-plated variants provide exceptional corrosion resistance. Therefore, users can select materials based on their specific conductivity and durability requirements.

4. Sterilization and Reusability

Designed for repeated use, most models withstand standard autoclaving at 134°C. However, specialized versions may require alternative sterilization methods such as ethylene oxide (EtO) or chemical processes. Regardless of method, the electrode maintains its structural integrity through multiple sterilization cycles.

5. Customization Options

Available in various configurations, the electrode system offers:
• Diameter options ranging from 0.5mm to 10mm
• Interchangeable tips for multipurpose applications
• Adjustable insulation lengths for specific depth requirements
• Specialized coatings for enhanced performance

Applications

Medical & Clinical Applications

In diagnostic procedures, the electrode excels at nerve conduction studies due to its precise stimulation capabilities. Similarly, for therapeutic applications like deep brain stimulation (DBS), its rigid shaft facilitates accurate placement. Furthermore, electrosurgical procedures benefit from its focused energy delivery and safety features.

Industrial & Research Applications

Manufacturing environments frequently utilize this electrode for micro-welding tasks where stable contact is essential. Meanwhile, in electrical testing applications, it provides reliable current delivery for circuit diagnostics. Research laboratories particularly value its consistency in neuroscience experiments requiring acute measurements.

Key Advantages

• Precision Targeting: Straight shaft design enables direct linear access
• Enhanced Safety: Advanced insulation prevents current leakage
• Long-Term Reliability: Durable construction withstands repeated use
• Adaptability: Customizable for diverse application requirements

Conclusion

Representing an optimal balance of precision and safety, the Ball Electrode – Straight (Insulated) meets the rigorous demands of modern medical and industrial applications. By incorporating high-quality materials with thoughtful engineering, it delivers consistent performance across various use cases. For optimal results, users should select configurations that best match their specific operational requirements.
